Illuminating Brilliance

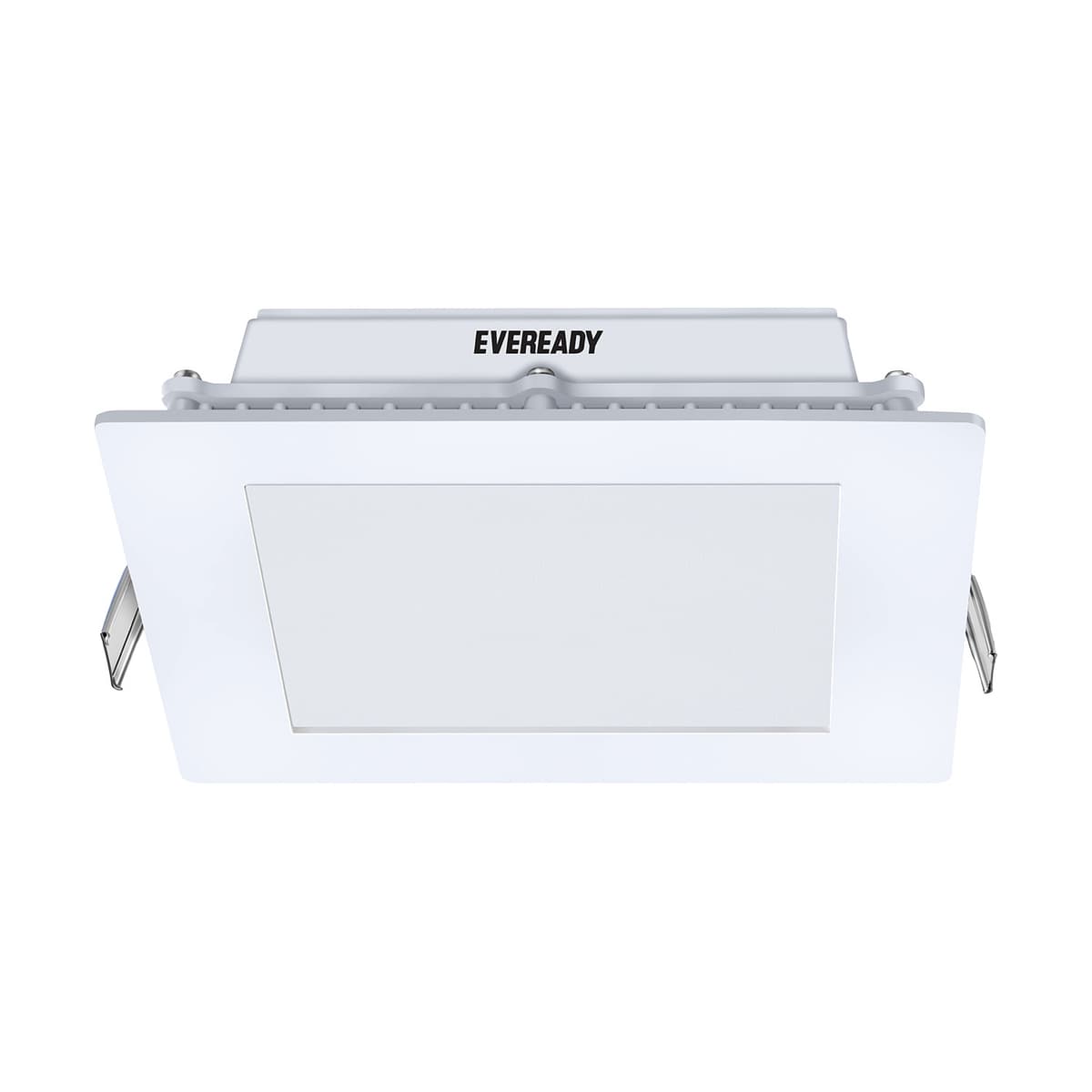

Nulite round/square shaped LED downlights are designed to deliver not just high efficiency but also a superior quality of light. These LED downlights are made with pressure die cast aluminium housing for improved life and efficiency. It comes with opal acrylic diffuser for spot-free and uniform lighting.
Usage
Open OfficeCommon Areas PassagesShowroomsCafeteria
Features
Superior colour rendering properties for increased efficiencies at work.Superior thermal management with die cast aluminium housing for improved LED & luminaire life.Sleek design with elegant finish along with spotless and uniform light distribution.It is also available with battery backup version.
Specifications
| Housing & Finish | Pressure die-cast Aluminium |
| Power Factor | ≥ 0.9 |
| Total Harmonic Distortion | ≤ 10% |
| Surge Protection | Up to 2.5kV inbuilt |
| Input Voltage | 240V 50Hz |
| Operating Voltage Range | 140V - 280V AC |
| Average life span at L70B50 | 25000 Hours |
| Operating Temperature | -10℃ to +50℃ |
| Mounting arrangement | Recess |
| Ingress protection & Impact resistance | IP20, IK03 |
Product Ordering Details
| Ordering Code | Product Cat Ref | Input Power (W) | CCT | CRI | Luminous Flux (Lumens) | Case Lot | Weight |
|---|---|---|---|---|---|---|---|
| On Request | LEDDNR006I4-01 | 6W | 4000K | >80 | 600 | 12 | 0.25 |
| On Request | LEDDNR006I6-01 | 6W | 6500K | >80 | 600 | 12 | 0.25 |
| 6DA2408R809 | LEDDNR009I4-01 | 9W | 4000K | >80 | 900 | 12 | 0.25 |
| 6DA2658R809 | LEDDNR009I6-01 | 9W | 6500K | >80 | 900 | 12 | 0.25 |
| 6DA2408R812 | LEDDNR012I4-01 | 12W | 4000K | >80 | 1200 | 12 | 0.25 |
| 6DA2658R812 | LEDDNR012I6-01 | 12W | 6500K | >80 | 1200 | 12 | 0.25 |
| 6DA2408R815 | LEDDNR015I4-01 | 15W | 4000K | >80 | 1500 | 12 | 0.35 |
| 6DA2658R815 | LEDDNR015I6-01 | 15W | 6500K | >80 | 1500 | 12 | 0.35 |
| 6DA2408R818 | LEDDNR018I4-01 | 18W | 4000K | >80 | 1800 | 12 | 0.35 |
| 6DA2658R818 | LEDDNR018I6-01 | 18W | 6500K | >80 | 1800 | 12 | 0.35 |
| On Request | LEDDNR006I4-01 | 6W | 4000K | >80 | 600 | 12 | 0.31 |
| On Request | LEDDNR006I6-01 | 6W | 6500K | >80 | 600 | 12 | 0.31 |
| 6DA1408R809 | LEDDN009I4-01 | 9W | 4000K | >80 | 900 | 12 | 0.31 |
| 6DA1658R809 | LEDDN009I6-01 | 9W | 6500K | >80 | 900 | 12 | 0.31 |
| 6DA1408R812 | LEDDN012I4-01 | 12W | 4000K | >80 | 1200 | 12 | 0.31 |
| 6DA1658R812 | LEDDN012I6-01 | 12W | 6500K | >80 | 1200 | 12 | 0.31 |
| 6DA1408R815 | LEDDN015I4-01 | 15W | 4000K | >80 | 1500 | 12 | 0.43 |
| 6DA1658R815 | LEDDN015I6-01 | 15W | 6500K | >80 | 1500 | 12 | 0.43 |
| 6DA1408R818 | LEDDN018I4-01 | 18W | 4000K | >80 | 1800 | 12 | 0.43 |
| 6DA1658R818 | LEDDN018I6-01 | 18W | 6500K | >80 | 1800 | 12 | 0.43 |
Raise a Query
Due To Continuous Technological Improvements And Design Requirements, Our Products Are Subject To The Up-Gradation Which May Result In Change Of Design, Shape, And Technical Data As Appearing. Please Connect With Our Authorized Dealer Or Sales Person For Latest Lighting Solutions.
